Nanostructure IC
The Nanostructure IC family is covering a method for the manufacture of an integrated circuit comprising nanostructures.

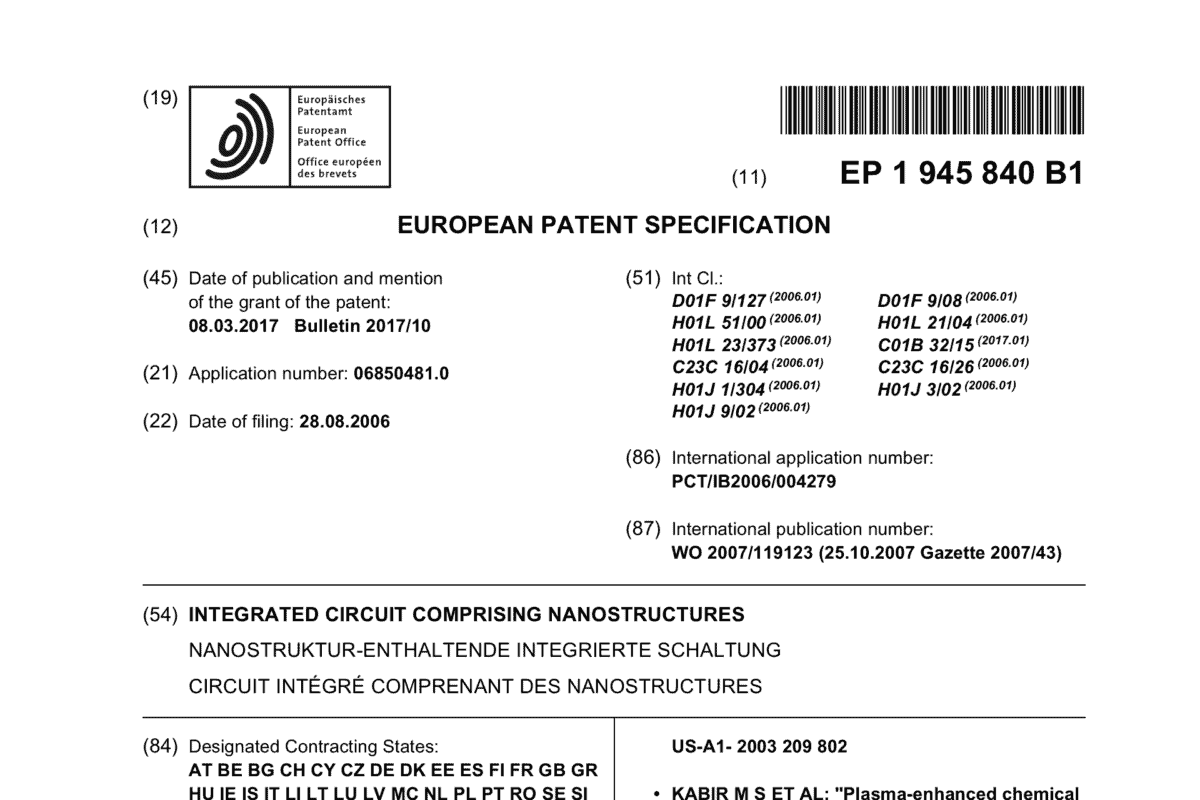

The invention: Integrated circuit comprising nanostructures. The present invention provides for nanostructures grown on a conducting substrate, and a method of making the same. The nanostructures grown according to the claimed method are suitable for interconnects and heat dissipators in electronic devices.
Granted patents relating to the innovation
| Patent Office | Patent |
|---|---|
| China | CN101189372 |
| China | CN102709132 |
| China | CN105575743 |
| Europe | EP2587514 |
| Russia | RU2406689 |
